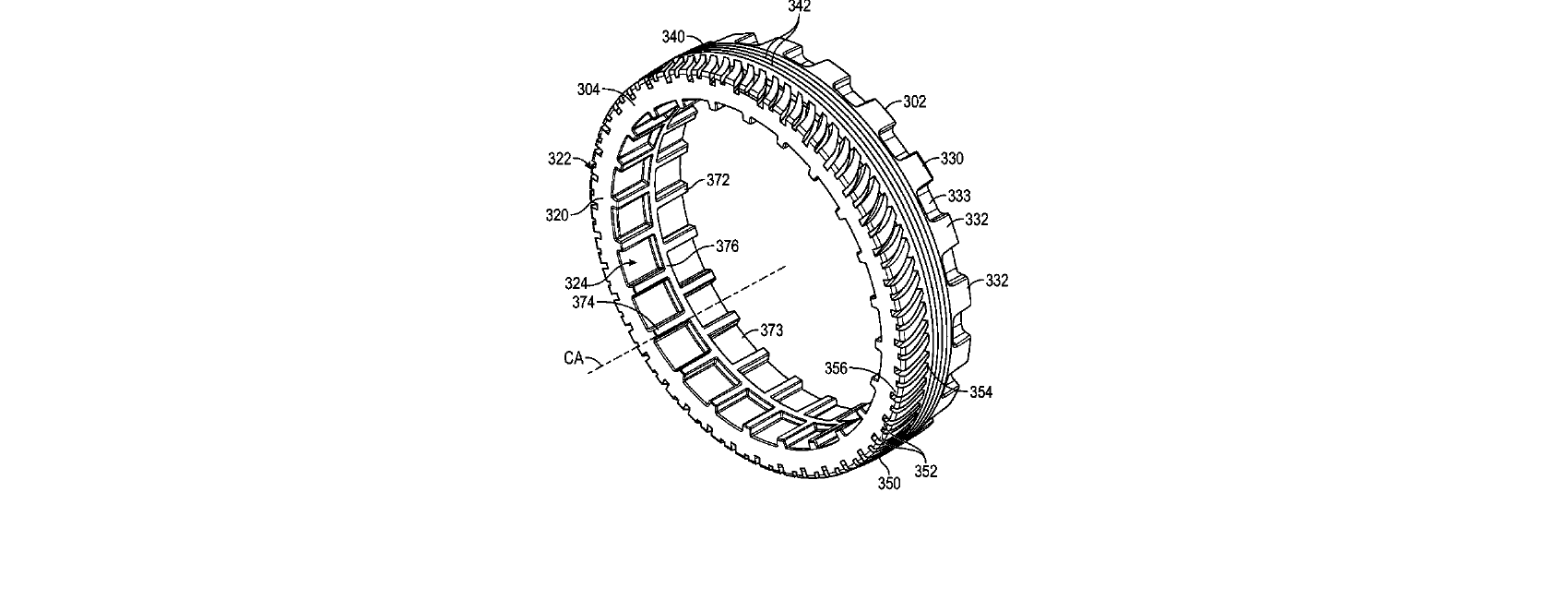

Abstract An autonomous mobile cleaning robot can include a cleaning assembly and a drive wheel. The cleaning assembly can be configured to lift debris from a surface and direct the debris into a dustpan. The drive wheel can be configured to move the autonomous mobile cleaning robot on the surface. The drive wheel can include a first set of treads configured to climb an obstacle, a second set of treads configured to maintain continuous contact with a surface of a floor, and third set of treads configured to direct water underneath the third set of treads towards a center of the autonomous mobile cleaning robot.

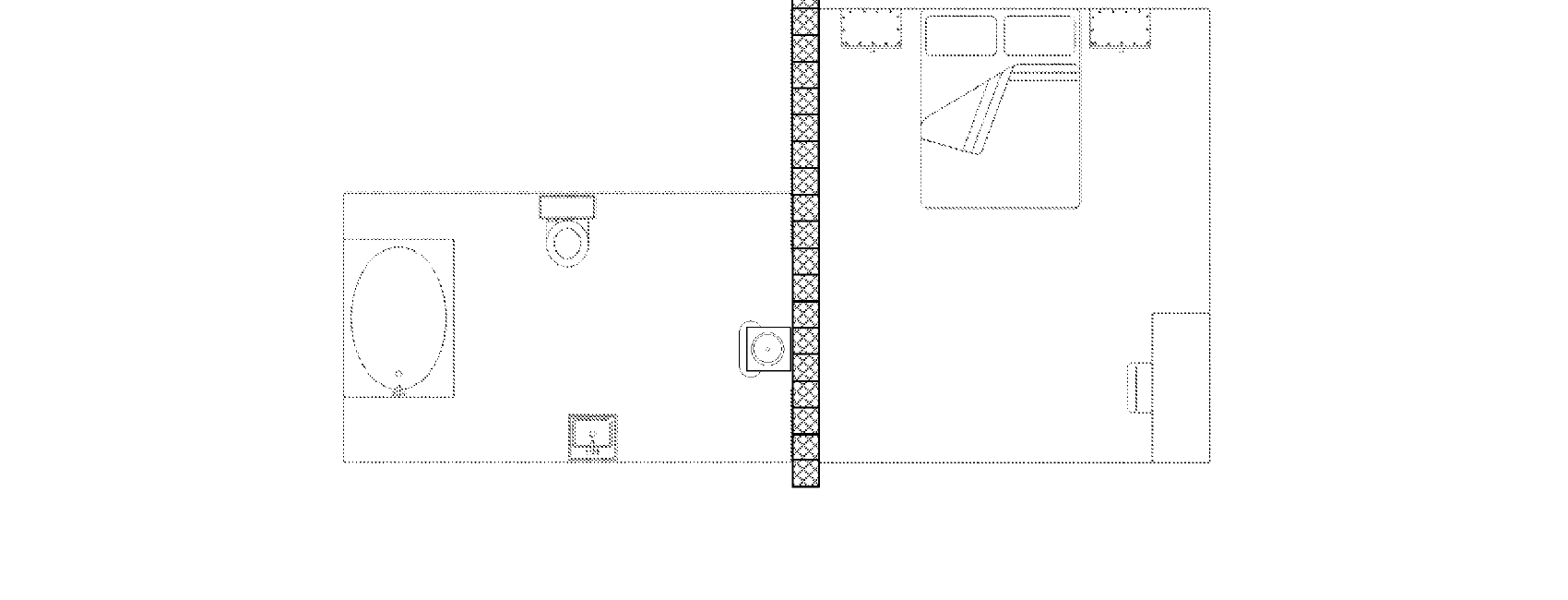

Abstract A robot includes a body that is movable relative to a surface one or more measurement devices within the body to output information based on an orientation of the body at an initial location on the surface, and a controller within the body to determine an orientation of the body based on the information and to restrict movement of the body to an area by preventing movement of the body beyond a barrier that is based on the orientation of the body and the initial location.

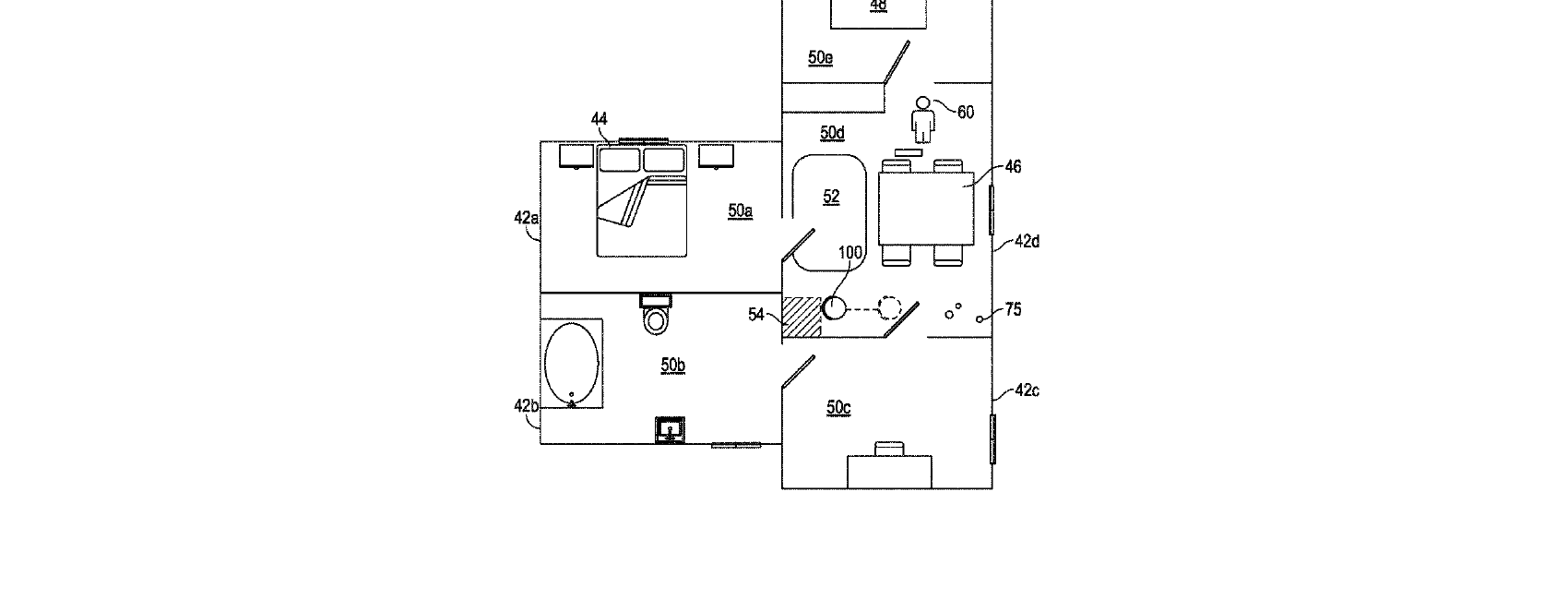

Abstract A mobile cleaning robot an include a body, a drive wheel, a wheel stop, and an actuator system. The drive wheel can be connected to the body and can be operable to move the mobile cleaning robot about an environment. The wheel stop can be movable with respect to the body. The actuator system can be operable to move the wheel stop to engage the drive wheel to extend the drive wheel from the body.

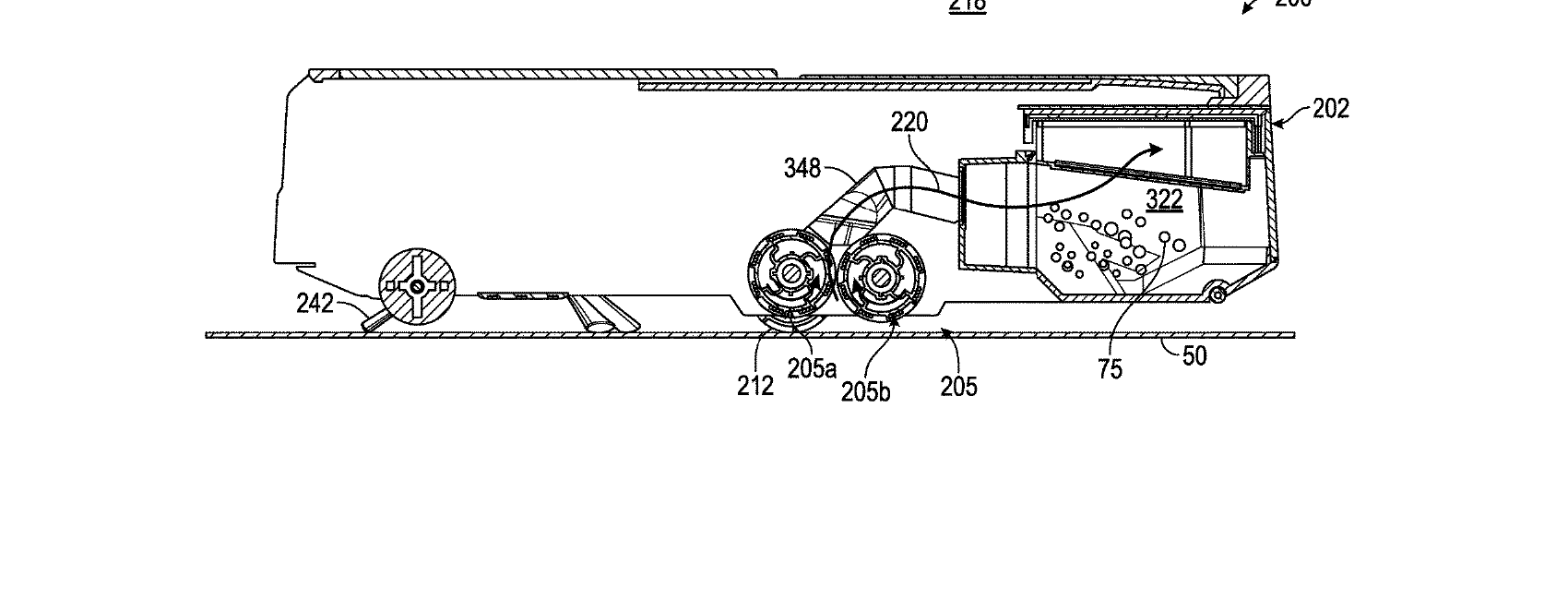

Abstract A mobile cleaning robot can include a body movable within an environment and a debris bin located at least partially within the body. The robot can include a cleaning assembly connected to the body, where the cleaning assembly includes a first debris port connected to the debris bin and a second debris port connected to the debris bin.

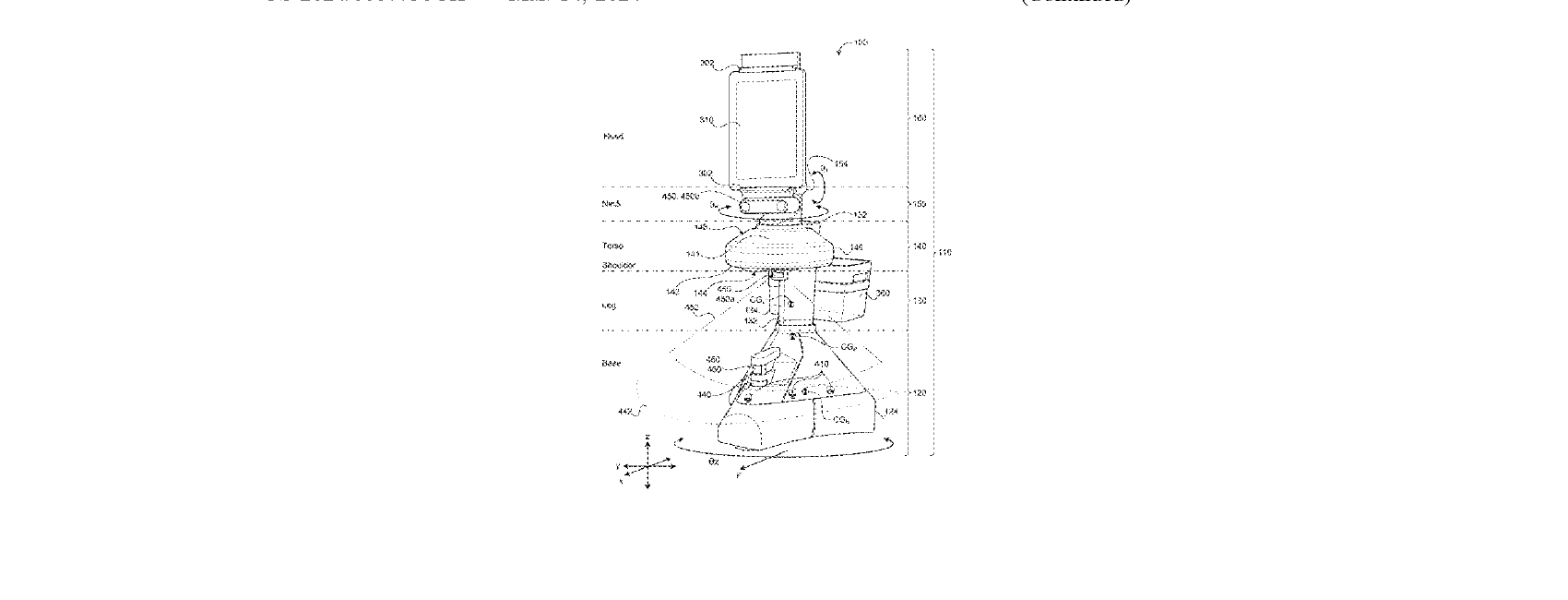

A telepresence robot may include a drive system, a control system, an imaging system, and a mapping module. The mapping module may access a plan view map of an area and tags associated with the area. In various embodiments, each tag may include tag coordinates and tag information, which may include a tag annotation. A tag identification system may identify tags within a predetermined range of the current position and the control system may execute an action based on an identified tag whose tag information comprises a telepresence robot action modifier. The telepresence robot may rotate an upper portion independent from a lower portion. A remote terminal may allow an operator to control the telepresence robot using any combination of control methods, including by selecting a destination in a live video feed, by selecting a destination on a plan view map, or by using a joystick or other peripheral device.

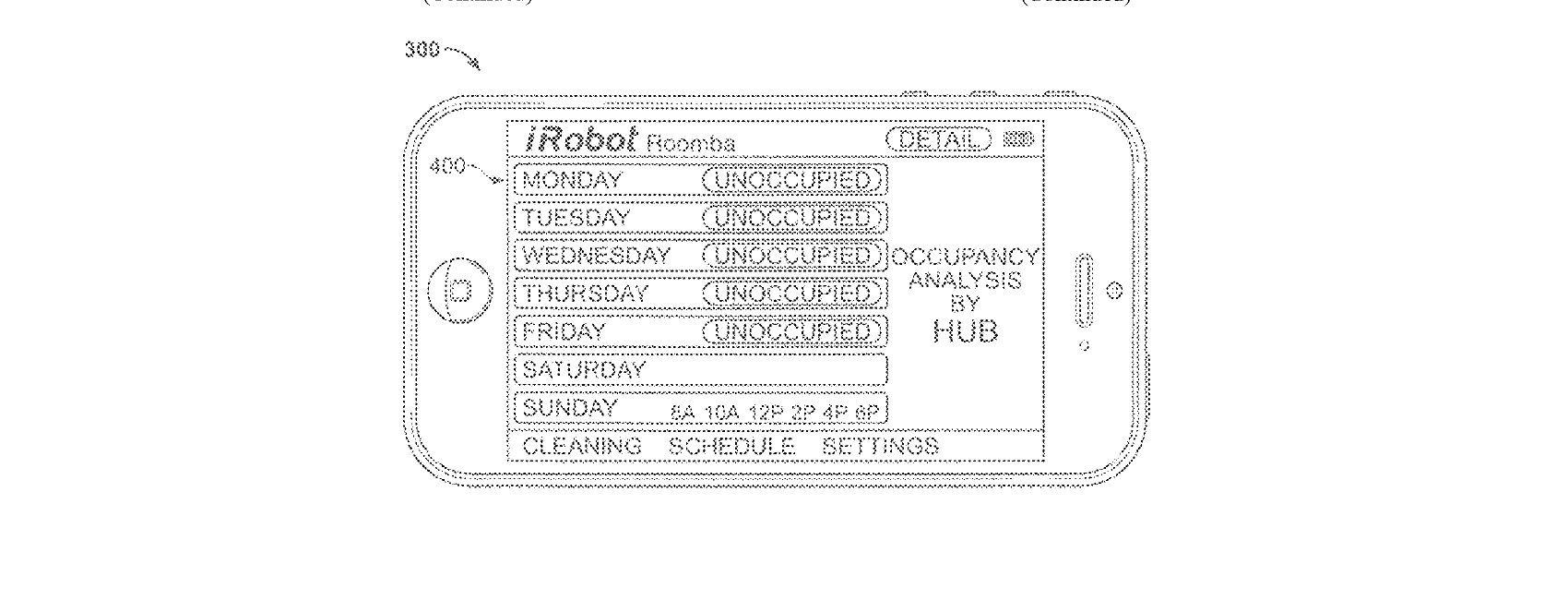

Abstract A mobile robot includes a processor connected to a memory and a wireless network circuit, for executing routines stored in the memory and commands generated by the routines and received via the wireless network circuit. The processor drives the mobile robot to a multiplicity of accessible two dimensional locations within a household, and commands an end effector, including at least one motorized actuator, to perform mechanical work in the household. A plurality of routines include a first routine which monitors a wireless local network and detects a presence of a network entity on the wireless local network, a second routine which receives a signal from a sensor detecting an action state of one of the network entities, the action state changeable between waiting and active, and a third routine which commands the end effector to change state of performing mechanical work based on the presence and on the action state.

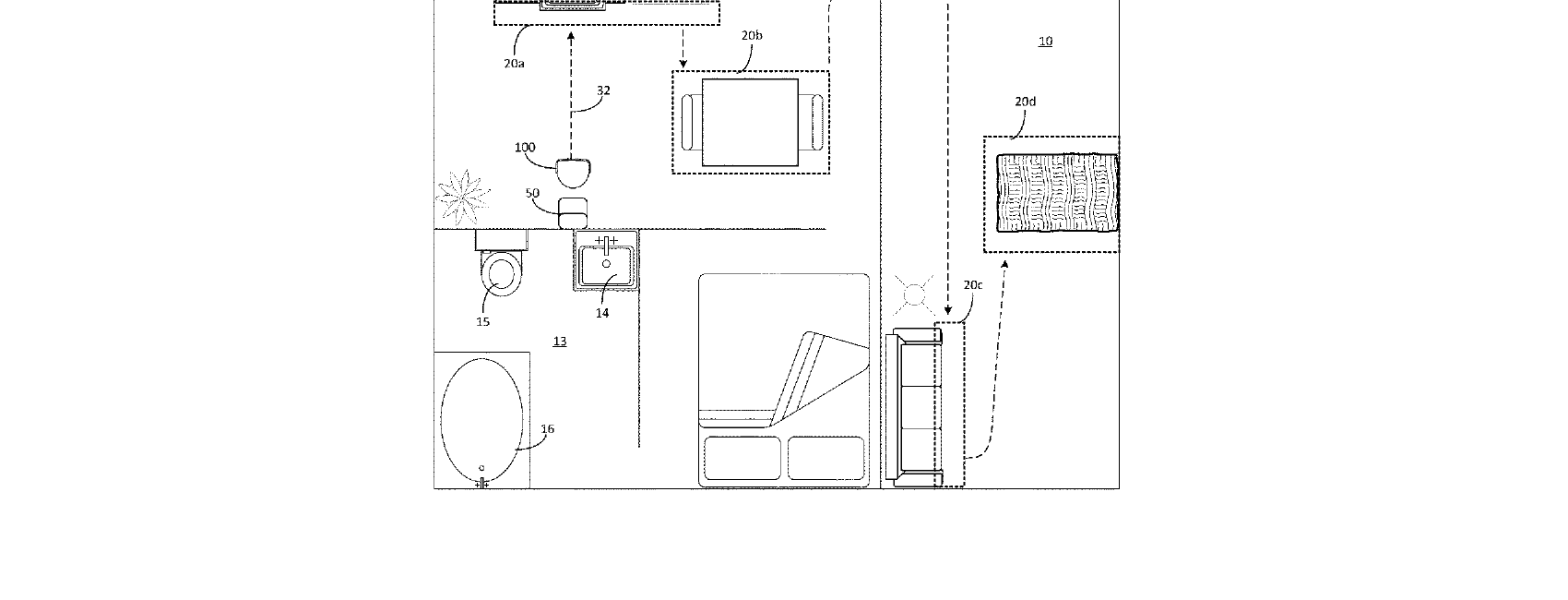

A method includes receiving mapping data collected by an autonomous cleaning robot as the autonomous cleaning robot moves about an environment. A portion of the mapping data is indicative of a location of an object in the environment. The method includes defining a clean zone at the location of the object such that the autonomous cleaning robot initiates a clean behavior constrained to the clean zone in response to encountering the clean zone in the environment.

Abstract A method of prioritizing cleaning of rooms of an environment for a mobile cleaning robot can include generating a cleanliness score for each room of the environment using a controller. Each of the cleanliness scores can be indicative of an amount of debris expected in each respective room by the mobile cleaning robot. The method can also include generating a room cleaning priority based at least partially on the cleanliness score of each of the rooms. The method can also include scheduling operations of the mobile cleaning robot for a planned mission based on the room cleaning priority of each of the rooms of the environment.
